Application & Process

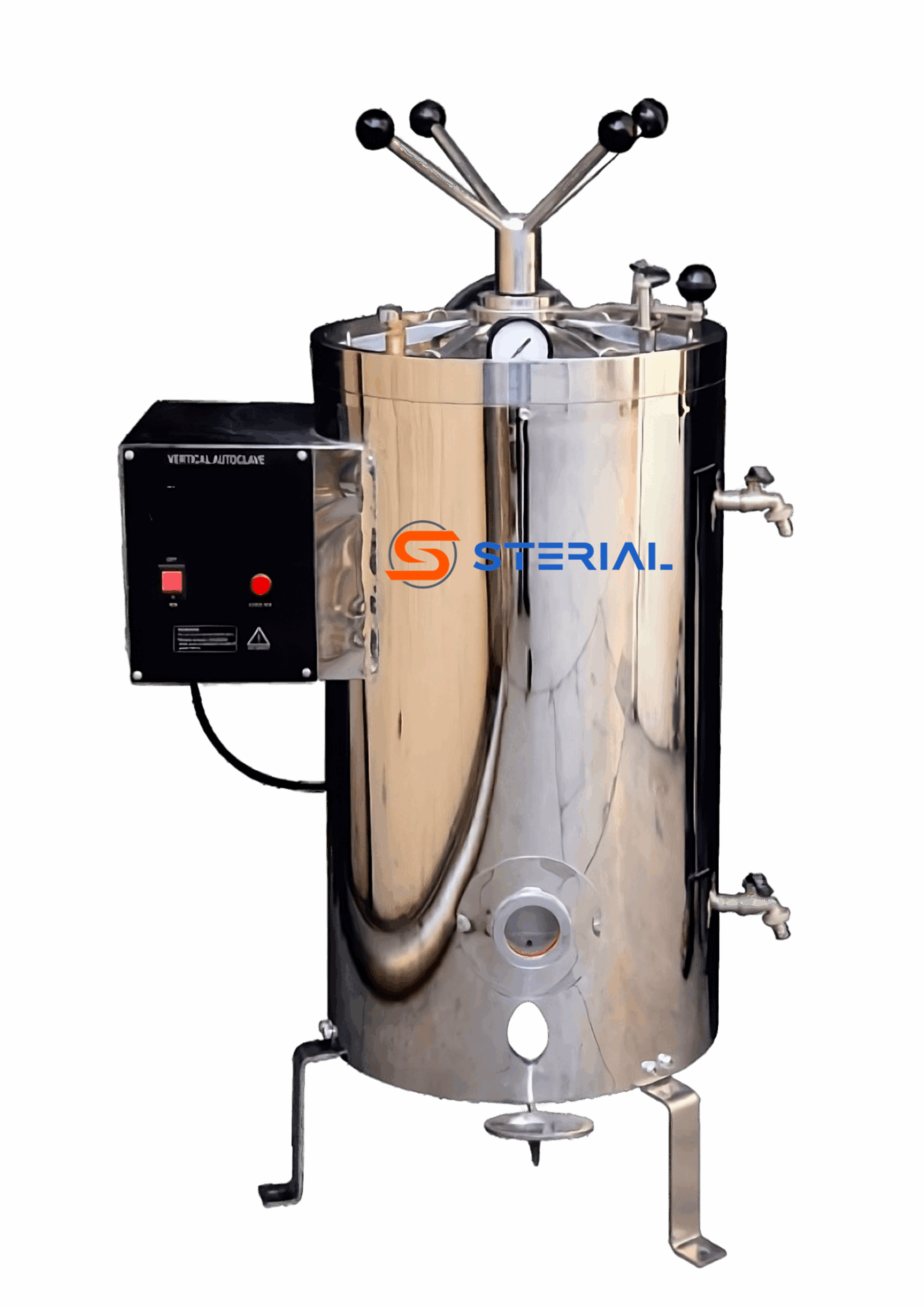

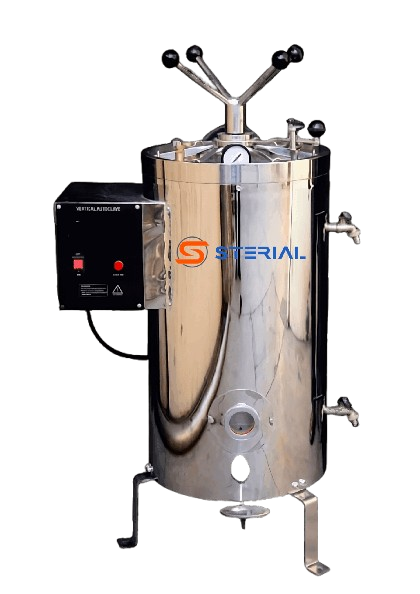

An autoclave is a high-pressure, high-temperature vessel used for sterilizing equipment, materials, and waste or for facilitating chemical reactions under controlled conditions. The process, known as autoclaving, is widely utilized in various industries, including healthcare, pharmaceuticals, food processing, and materials science. The unique ability of autoclaves to maintain precise environmental conditions makes them indispensable for processes that require sterilization, polymerization, vulcanization, and composite material curing.
| Size | Capacity(liter) | Heater |
| 25×45 | 22 | 1kw |
| 30×50 | 35 | 2kw |
| 35×55 | 52 | 3kw |
| 40×60 | 75 | 4kw |
| 45×60 | 90 | 4kw |
| 45×65 | 100 | 4kw |
| 45×70 | 110 | 5kw |
| 45×70 | 120 | 5kw |
| 50×70 | 150 | 6kw |
| 55×75 | 180 | 6kw |
| 55×90 | 200 | 6kw |
- Inner & Outer Chamber made of Stainless steel 304 grade.
- Digital temperature indicator
- Digital temperature Controller
- Easy lift and closing of the lid by manual assisted support
- Molded joint less Silicone rubber gasket
- Reliable steam pressure gauges
- Double or triple walled construction
- Lid is made of thick machined stainless steel plate
- Exhaust Valve, and water level indicator.
- Drain Valve facilitate easy cleaning of the chamber.
- All internal joints are argon arc welded.
- Pressure Control Switch and Low Water Level Cut-Off system for general safety of the element.
- Operating range from15psi to 22psi pressure.
- To work on 220/240 Volts, 50/60Hz AC supply.
- Over temperature alarm
- Water level indicator
- Pressure safety valve
- Over temperature/over pressure limiter
- Double wall /Triple Wall.
- Up to 134°C temperature range
- PID temperature controller cum timer with alarm (buzzer)
- PLC with HMI interface with data logging
- Lower water cut-off
- Stainless steel basket
