Application & Process

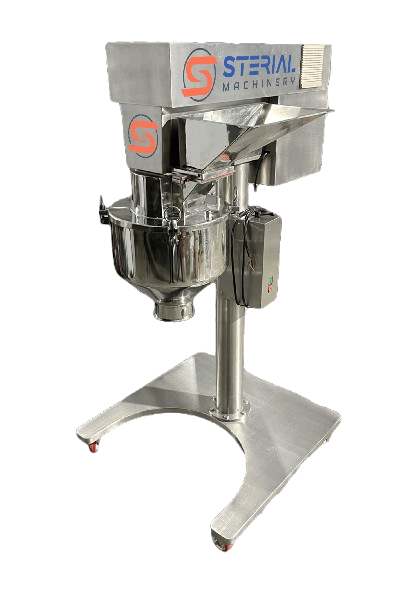

Multi Mill is used for wet and dry granulation, pulverization, milling, shredding, chopping, size reduction in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colors, Dyestuff, Food products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastics and Resins industries.

  • Design is cGMP – All contact parts and screen made of SS 316
  • High speed milling, granulating, pulverizing, mixing and size reduction of wet & dry material.
  • Easy removable contact parts for cleaning & inspection.
  • Variable force by swing better having knife & impact edges are rotating within screen.
  • Direction of beaters can be changed by forward- reversible switch.
  • Various combinations of perforated sieves & wire mesh.
  • Beaters & Scraper blades made of SS316.
  • Castor wheels provided for mobility.
  • AC frequency drive for variable speed.
  • Belt less Drive
  • Inline milling process with HSMG and Sifter
  • Flame Proof electrical.
Output 50-200kg/hr*
Electric Motor 3HP/5HP
Rotor Speed 750/1500/2300/3000 RPM
Charging Height 1520
Discharge Height 790
Total Height 1720
*Varies according to product characteristic & and screen type.
