Application & Process

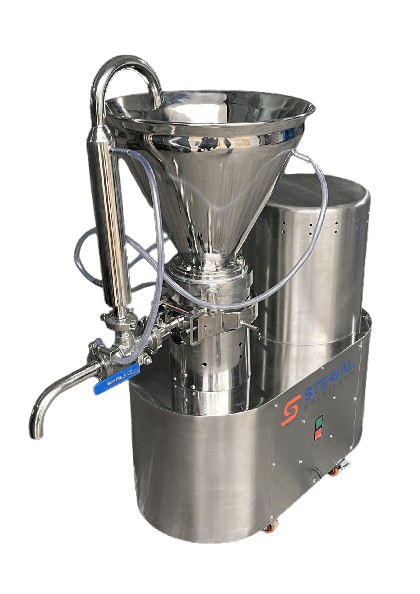

A colloid mill is a machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size of a liquid suspended in another liquid. This is done by applying high levels of hydraulic shear to the process liquid. It is frequently used to increase the stability of suspensions and emulsions. The colloid millis used for various applications such as Superfine grinding, homogenizing, emulsifying, dispersing, mixing and extracting of liquids, ointments and highly viscous products in pharmaceutical, cosmetics, suspensions & emulsion industry.

  • Design is cGMP – All contact parts ss316 &non contact parts ss304.
  • Totally leak-proof design.
  • Extended bearing housing specially designed to facilitate fine adjustments of bearing clearances or backlash to avoid metal to metal contact of rotor and stator.
  • Modified Design of Semi Concave Teeth in Rotor and Stator Reduces Motor H.P. and Gives Better Performance in Size Reduction without Damaging the Product.
  • Colloid mill is utilized in a number of industries including, food and beverage, pharmaceuticals and chemicals.
  • Horizontal / Vertical Drive.
  • Water cooling system.
  • Flame Proof Electrical.
Model
Output 10 TO 150 l/hr 150 TO 1500 l/hr 150 TO 1500 l/hr
Hopper Capacity 3L 15L 25L
Drive type Option DIRECT BELT/DIRECT BELT/DIRECT
Electric Motor 1HP / 2800RPM / 3 PHASE 3HP / 2800RPM / 3 PHASE 5HP / 2800RPM / 3 PHASE
Grinding Accuracy 5 TO 10 MICRONS 5 TO 10 MICRONS 5 TO 10 MICRONS
* Depending upon material characteristics viscosity, density & micron size.
